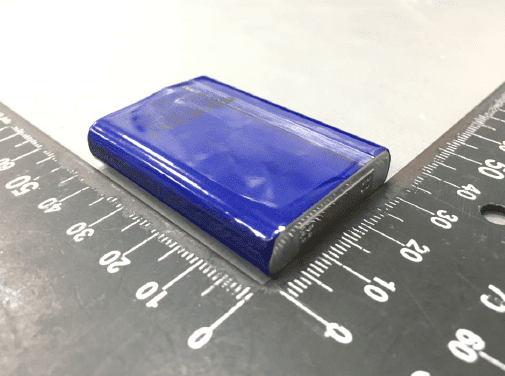

Molicel ICP103450M20A 2000mAh 3C 103450 Battery
Molicel ICP103450M20A 2000mAh 3C 103450 Battery - Image 2

Molicel ICP103450M20A 2000mAh 3C 103450 Battery

SKU ICP103450M20A

Be the first to leave a review.

Original price was: $4.80.Current price is: $3.50.

27% Off

Genuine batteries, large quantity in stock! We hold full specifications, test reports for UN38.3, MSDS, IEC62133, BIS, UL1642 and certificates for air & sea freight.
at 23°C

For more information click here

For more information click here

Description

Molicel ICP103450M20A 2000mAh 2A Battery

Manufacturer Molicel
Model ICP103450M20A
Size 103450
Nominal Capacity 2000mAh
Minimum Capacity 1900mAh
Continuous Discharge Rating (max) 4A
Nominal Voltage 3.7V
Maximum Voltage 4.2V
Discharge cut-off Voltage 2.5V
Protected No
Rechargeable Yes
Approx. Dimensions 10.8 x 34 x 50mm(Max)
Approx. Weight 42.0g
Associated Names ICP103450M20A

PHYSICAL CHARACTERISTICS

Shape:                             Prismatic
Can :                                Aluminum

Thickness (T)：         *10.8 mm(Max), **12.0 mm(Max)
Width (W)：               34 mm (Max)
Height (H)：               50 mm (Max)5 x 20 mm
Welding Tab：               5 x 20 mm

*Thickness at shipping state
**Thickness after 1C 1000 cycles at 23°C

FEATURES

1.  High Energy Density
2. Excellent Low & High Temperature Perfomance (-30°C ~ 60°C)
3. Highly Safe & Stable
4. Long Cycle Life
5. Great Long Term Storage Characteristics

Applications

Bluetooth speaker, bluetooth headset, smart home controller, smart secuirty device, intelligent door lock, smart glass, gps tracker, parking device, medical device, POS machine, wearable device, IoT device, sensor, handheld device, alarm system, beauty device, etc.

Certificates

Safety certificate: CB, IEC62133, UL1642, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Test Report

Additional Information

option

without fuse
